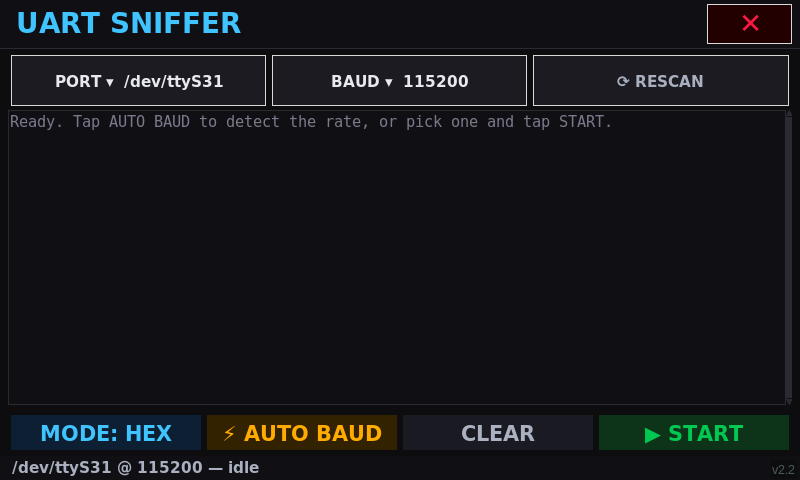

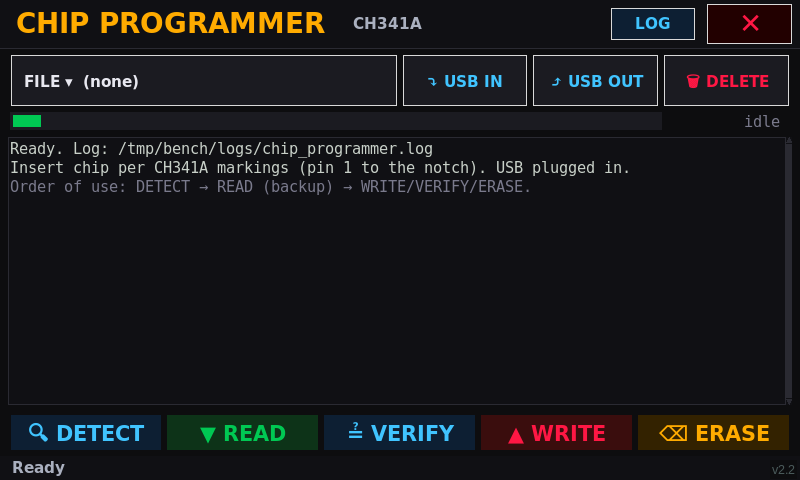

A self-contained Raspberry Pi diagnostic station with an 800×480 touchscreen — PS5 Syscon decoding, iOS panic analysis, SPI NOR flashing, UART sniffing, HDMI diode sweeps. No driver hell. No forum tabs. It boots to a big-button UI and works with the Wi-Fi off.
Every tech has the same setup: a beat-up Windows laptop, eleven browser tabs, a folder called TOOLS_v3_FINAL, and three USB-serial drivers fighting over COM4. It works — right up until it costs you a two-hour job.
| Bench reality | Laptop + utilities | BenchTool |
|---|---|---|
| Boot to first diagnostic | Boot, sign in, launch, find the EXE, plug in, pray the COM port enumerates. | Power on, tap the category card, start reading. |

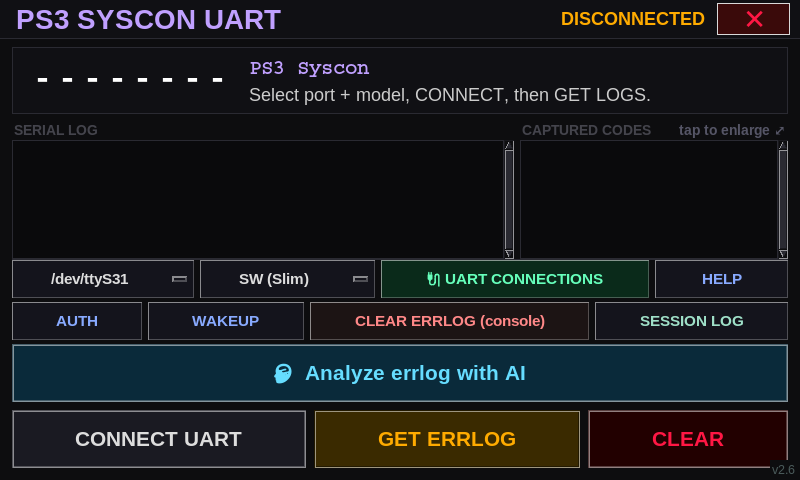

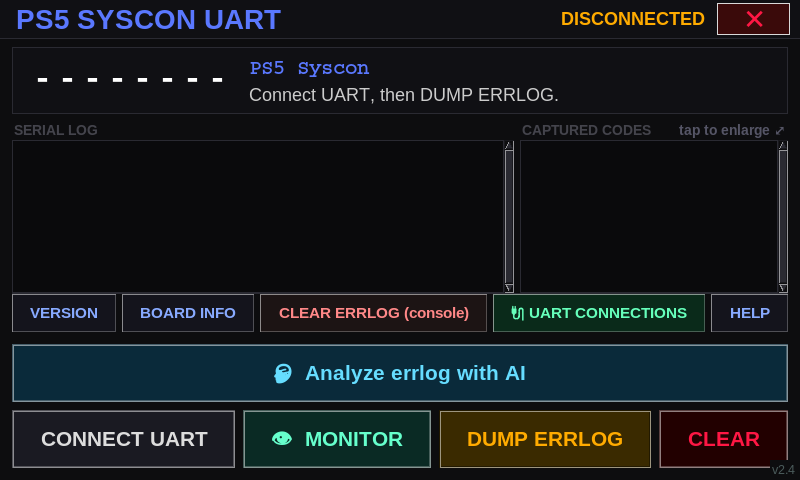

| Syscon error log decode | Copy hex, paste into a forum thread, cross-reference a 2019 spreadsheet, guess. | Tap Console → Syscon. The error decodes to the failing rail and part on screen. |
| Drivers & dependencies | CH340, FTDI, Prolific clones, Python 2 scripts, .NET runtime errors. | Zero. Plug the dongle in — live USB detection picks it up in the launcher. |
| Working offline | Half your tools are web-based. Shop internet drops, bench stops. | Every diagnostic runs fully offline. Wi-Fi is optional, not required. |
| Customer data handling | Photos, backups, and drive images scattered across a shared laptop’s C: drive. | Writes strictly to external USB. Nothing customer-related lands on the SD card. |

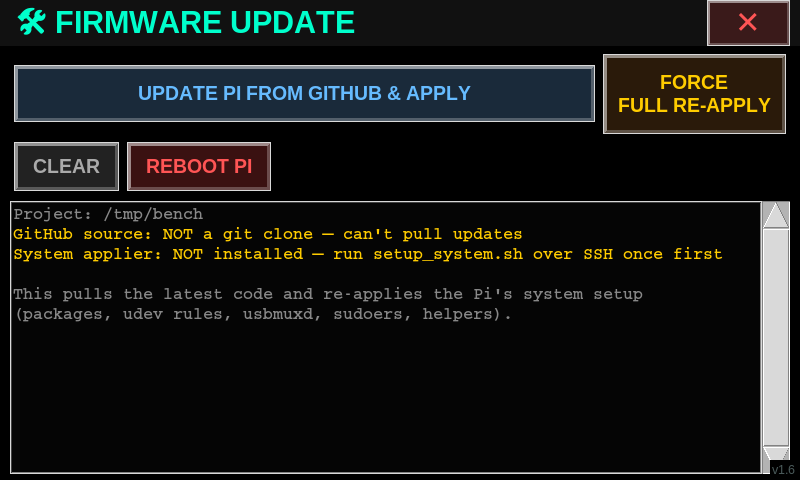

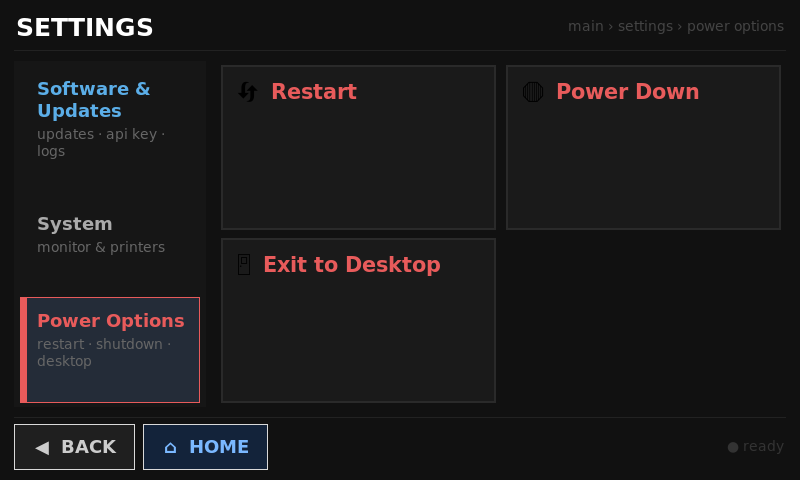

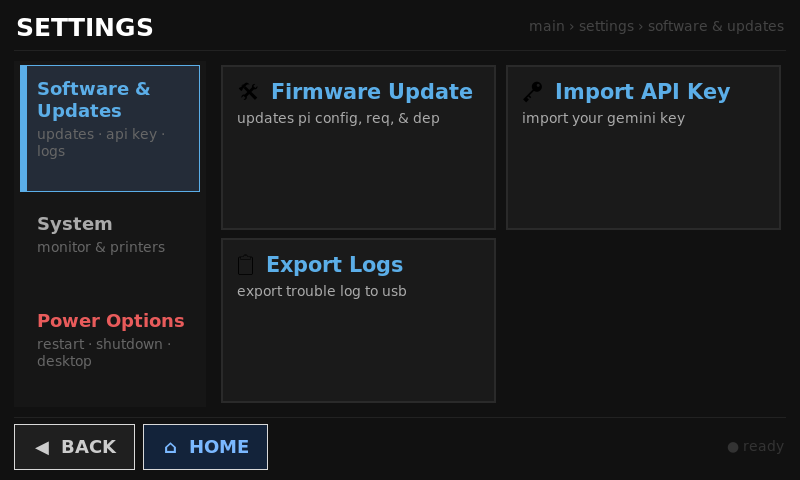

| Tool updates | Re-download, re-verify checksums, hope the dev didn’t abandon it. | 1-tap OTA update from the Settings card. |
| Bench footprint | Laptop, hub, four dongles, tangled leads, no space for the board you’re fixing. | One 800×480 box. Dongles plug into the side. Your mat stays clear. |
| Cost of entry | “Free” — plus the $1,000+ proprietary console you eventually buy anyway. | $220–$400. One time. |
| Shop-wide visibility | Sticky notes and one tech’s memory. | Sentinel repair desk on shop Wi-Fi — tickets, live bench status, searchable history. |

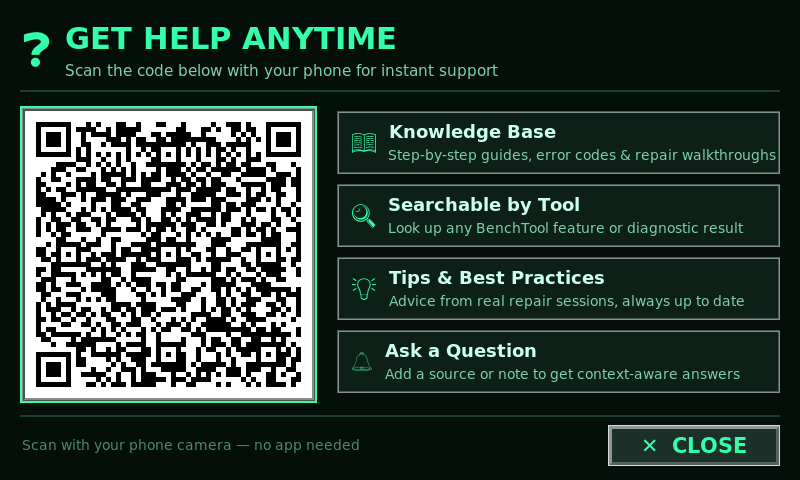

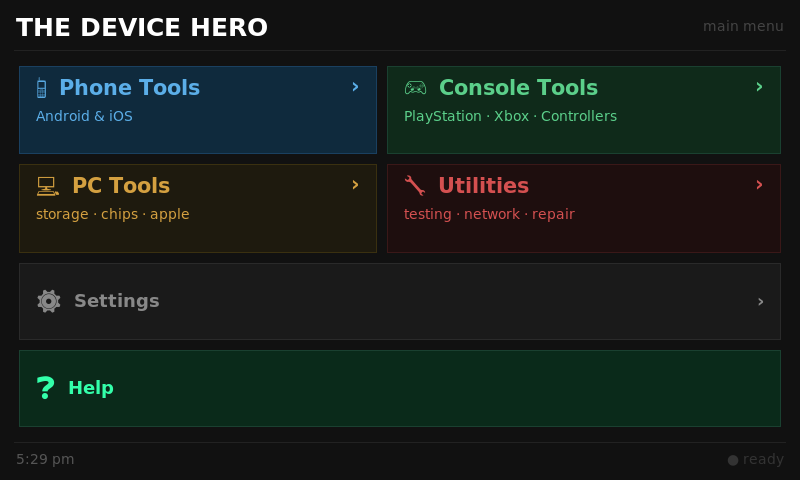

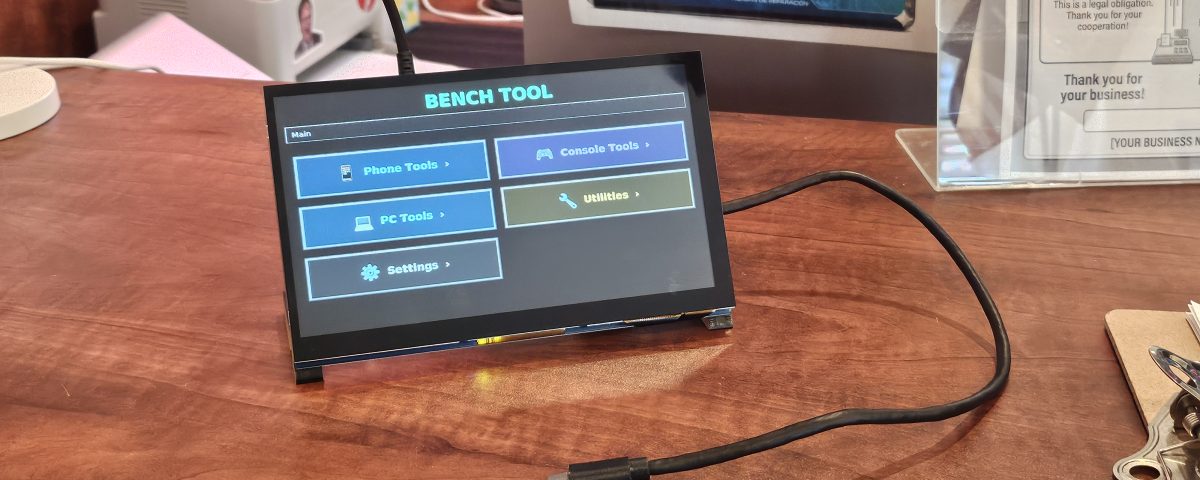

The launcher opens to color-coded category cards with live USB detection and built-in help on every screen. Console, phone, PC and chip work on the same screen — plus a shop-wide repair desk. Nothing else spans all four.
Every tool on the menu earns its place, but these four turn the tickets that used to eat an afternoon into a quote at the counter.

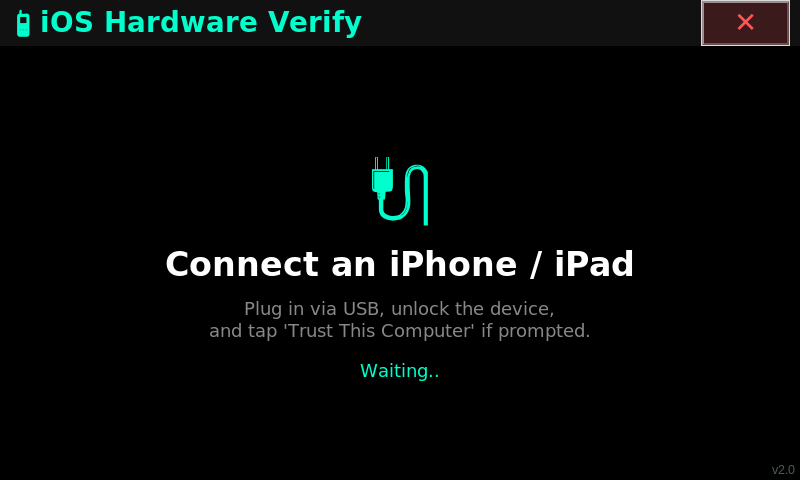

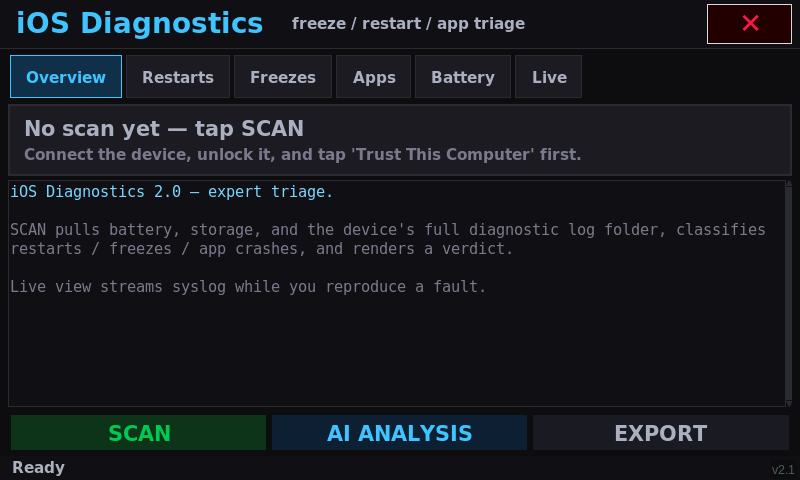

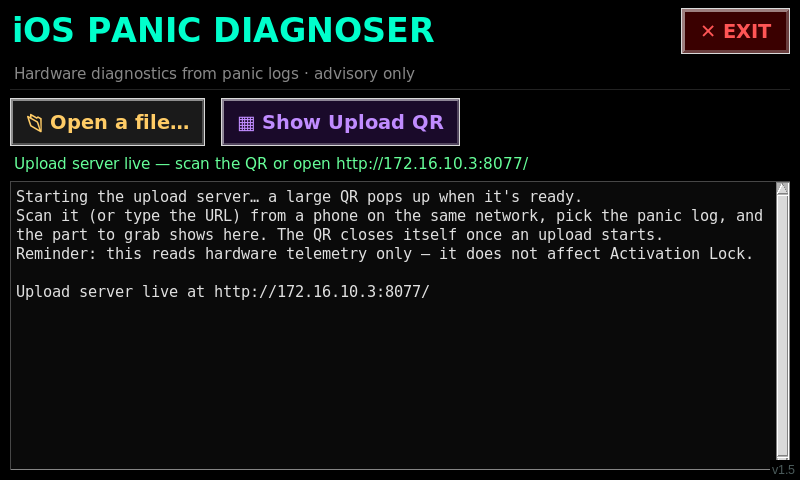

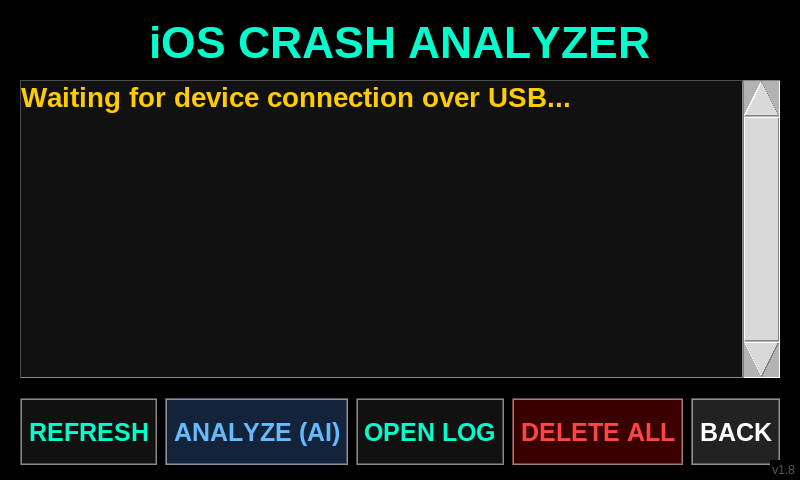

Is this iPhone worth fixing? Know before you open it.

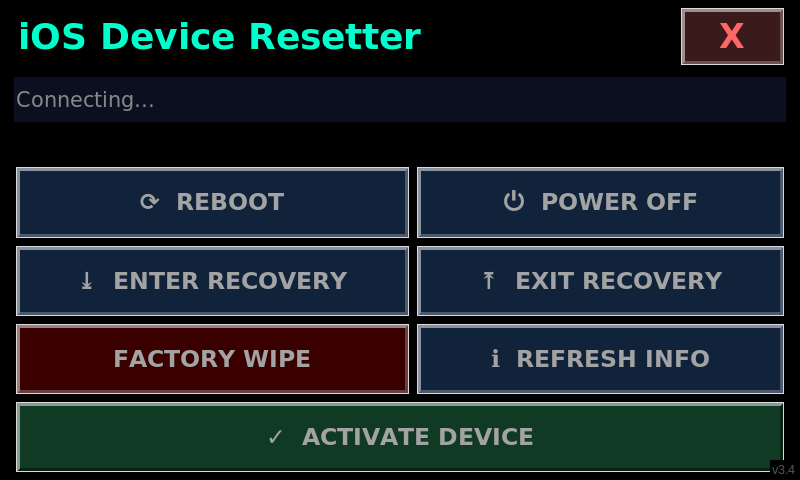

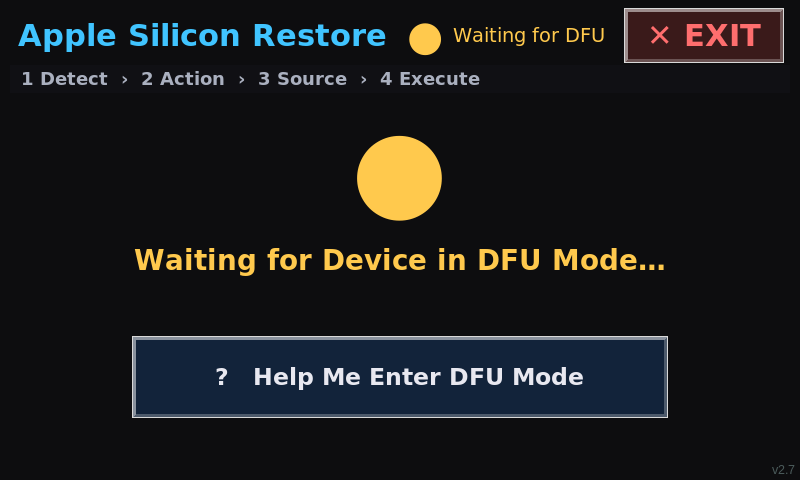

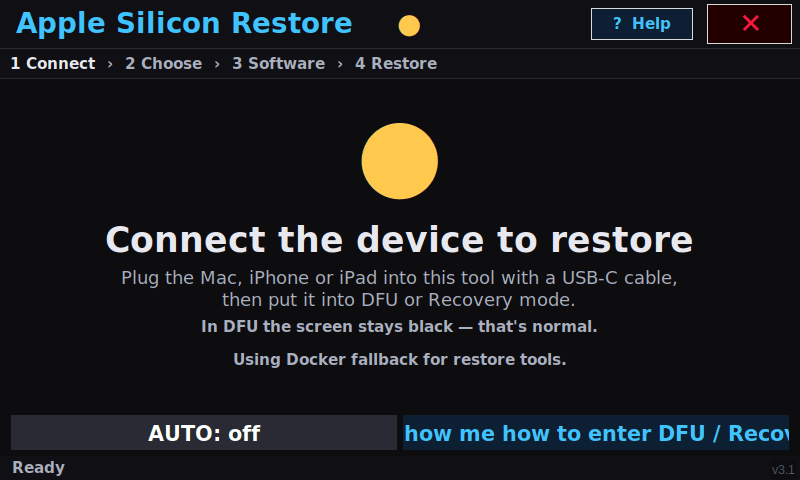

DFU restores with a guide that shows you how.

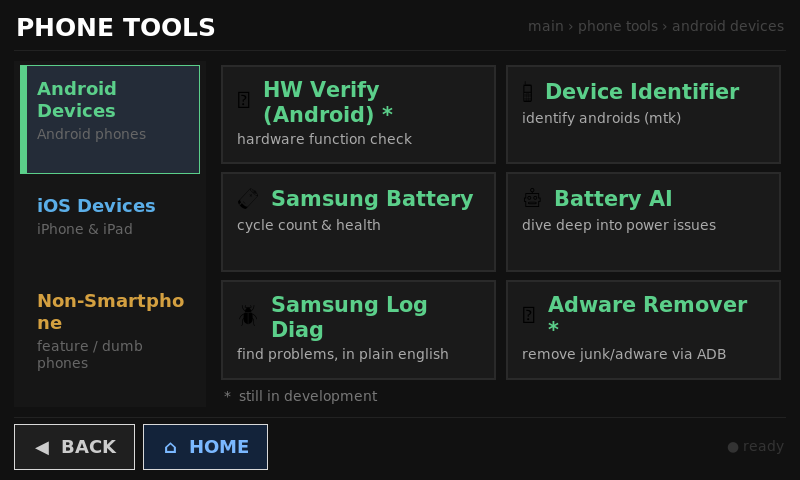

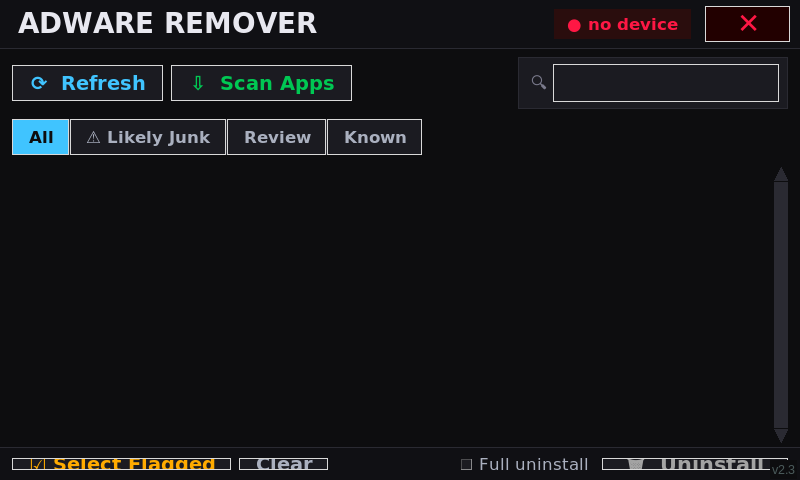

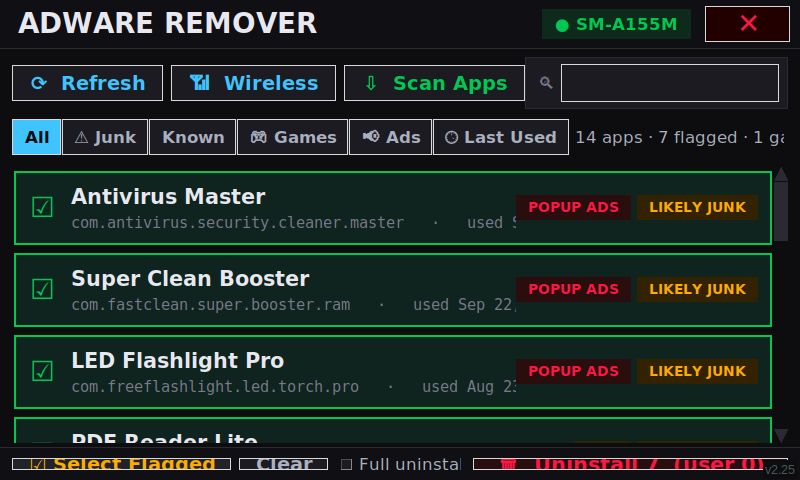

Clean a junk-riddled Android in one screen.
↗ Click to enlarge

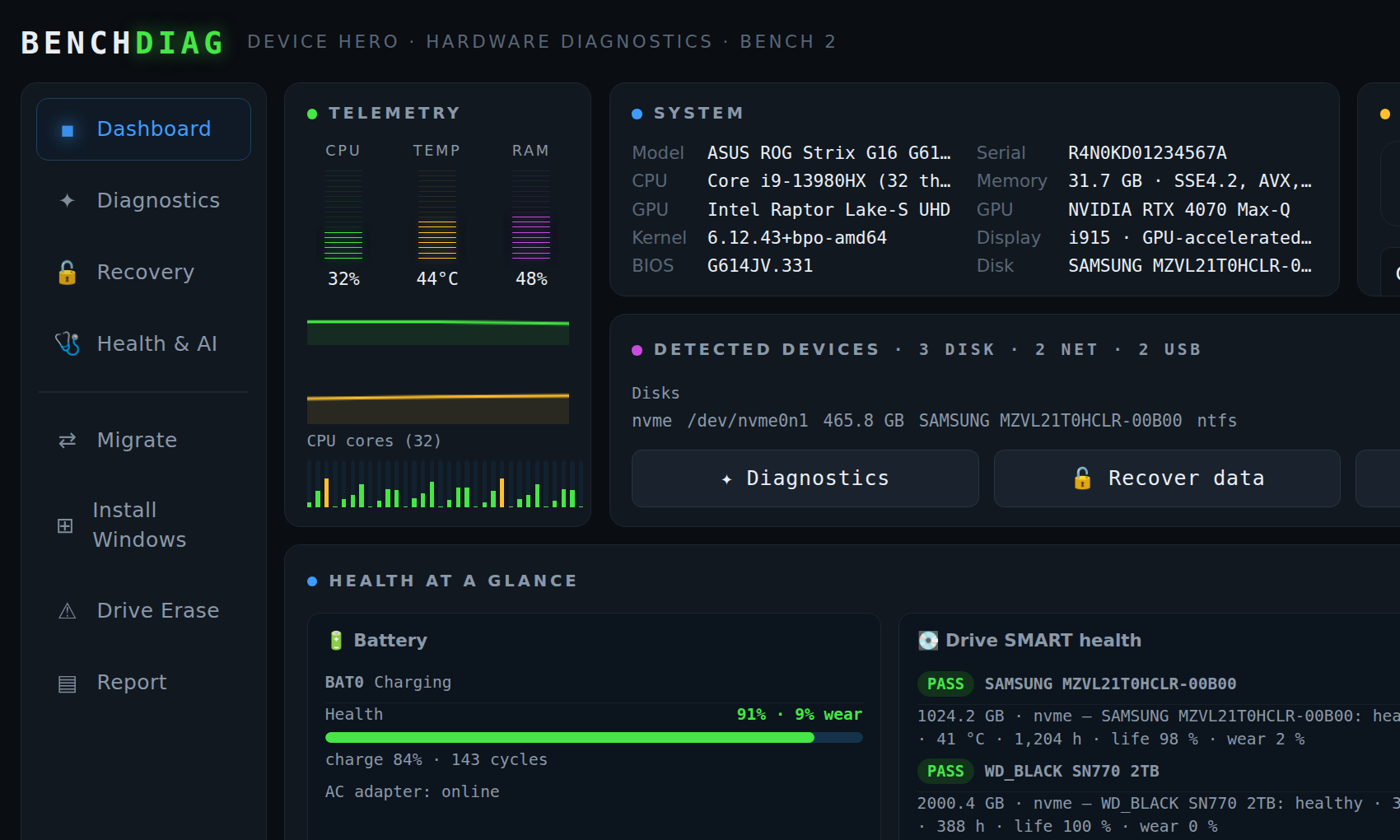

Boot any PC into a full diagnostic bench from a stick.
Screens shown are from the current BenchTool and BenchDiag builds; BenchDiag is pictured in demo mode on a laptop.

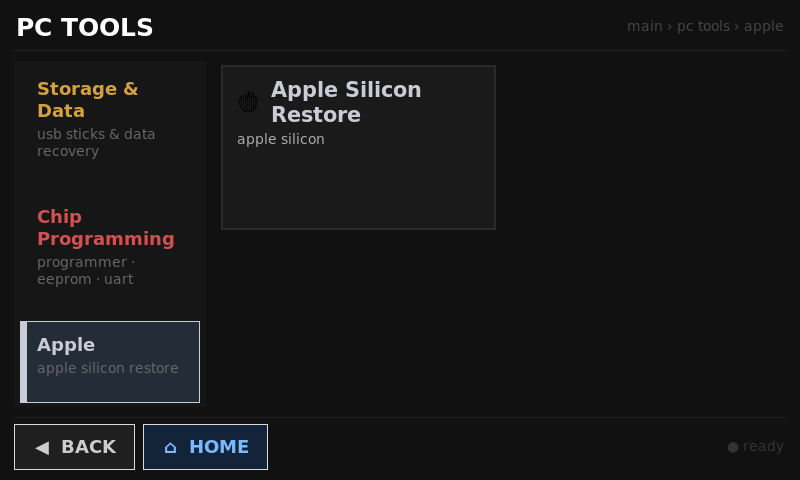

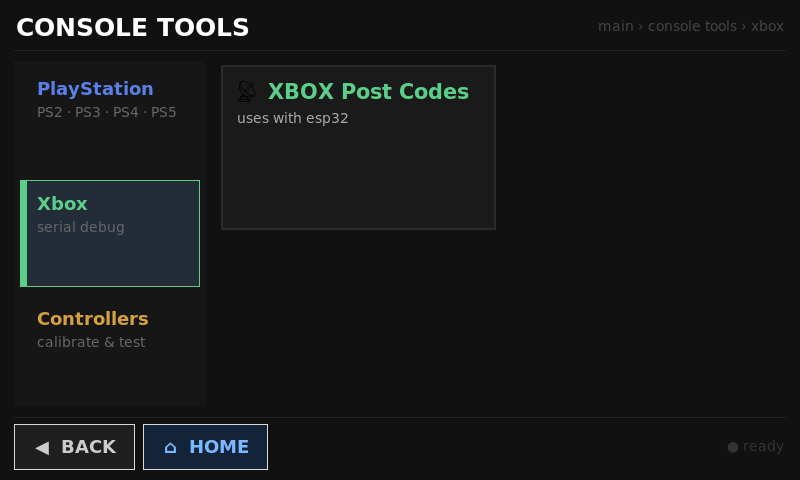

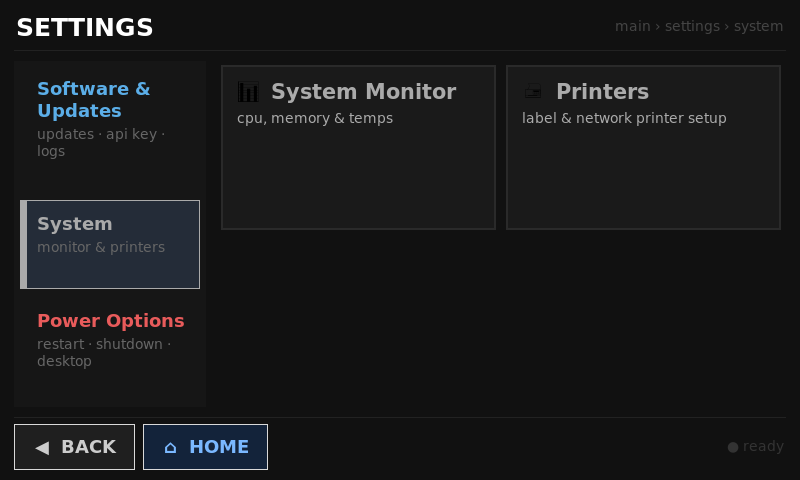

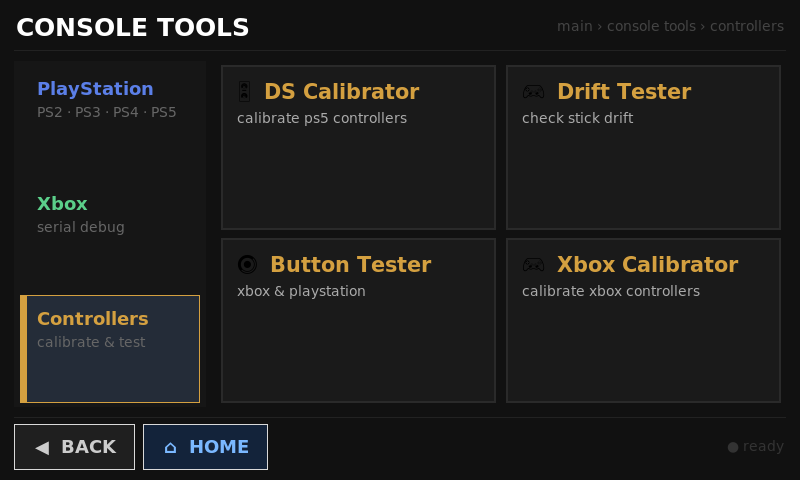

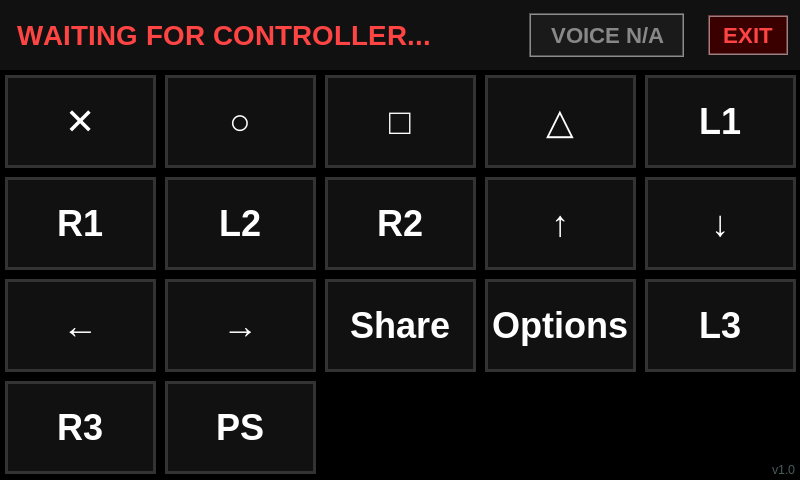

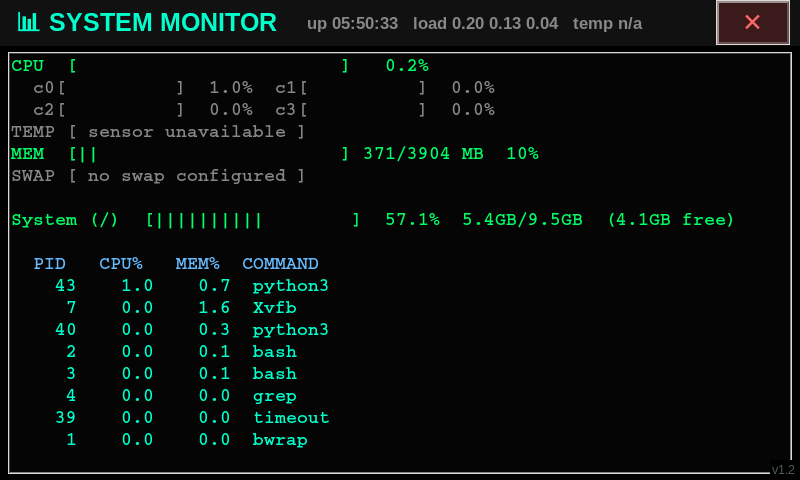

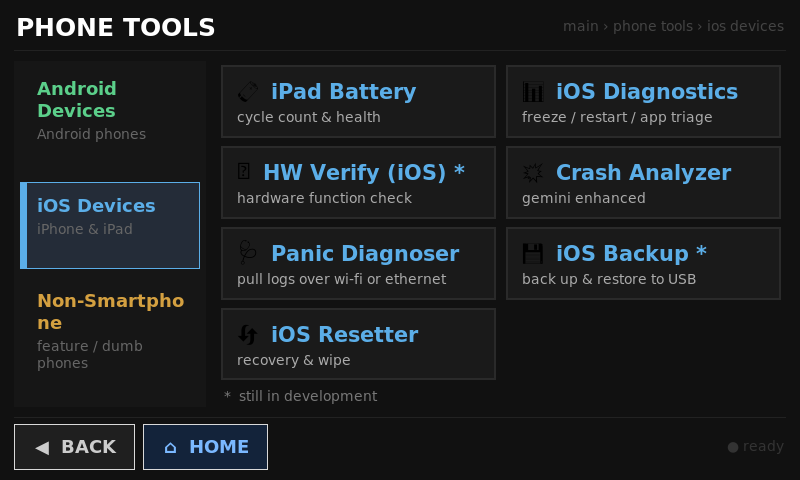

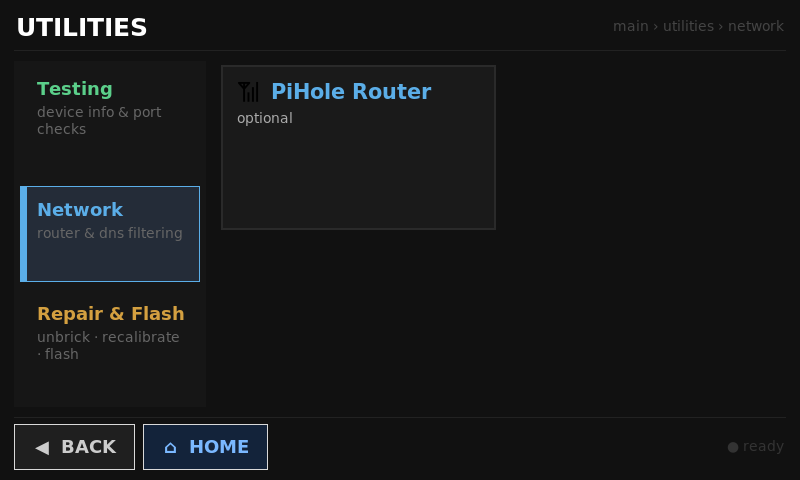

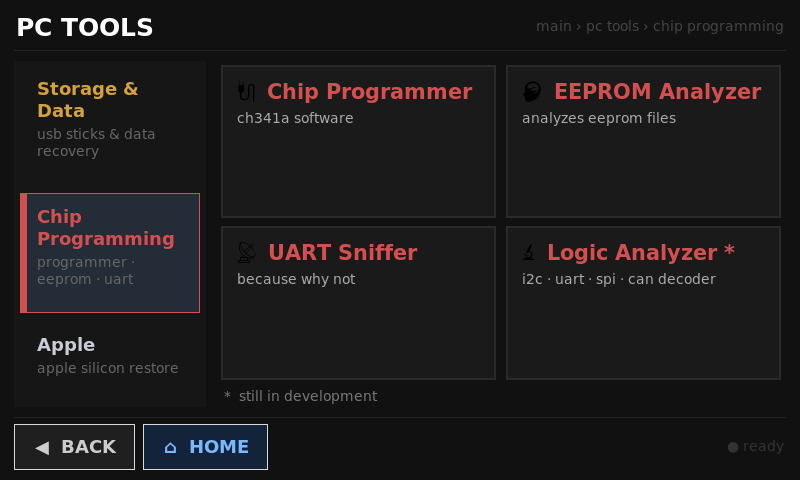

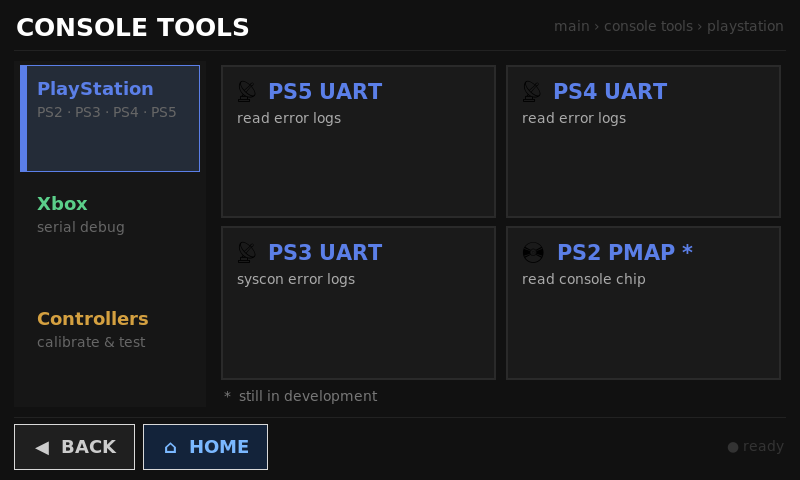

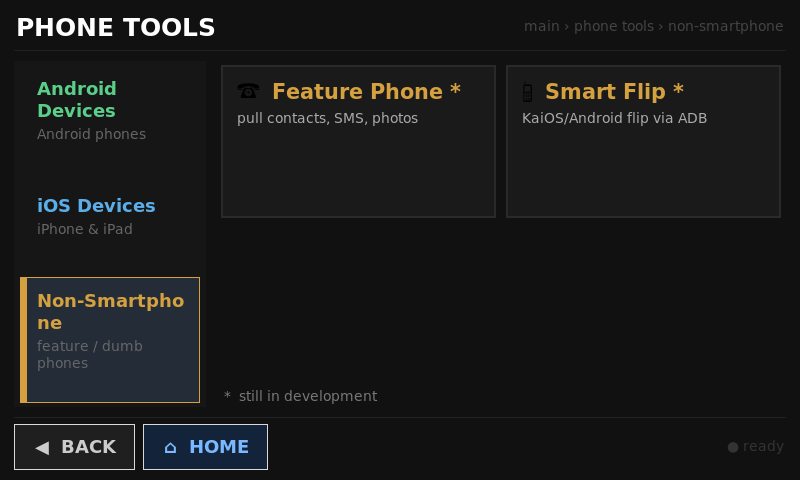

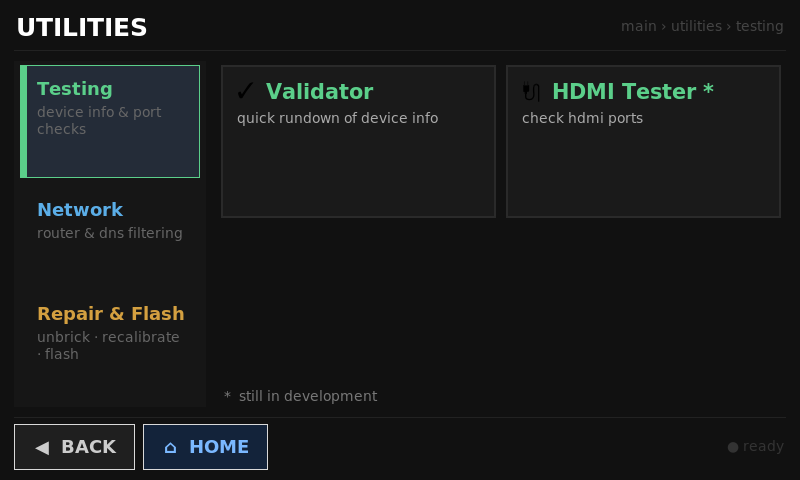

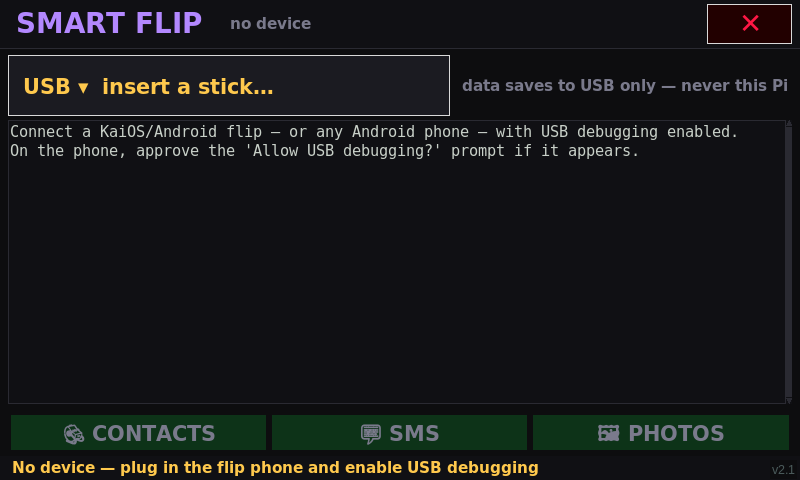

This is the real menu tree at its native 800×480 — every hub, every tab, every tool, in the same order your techs will find them. Tap a tile, then a tool, and you get a breakdown of what it does plus screens captured from a running unit on the current build — tap any screen to enlarge it.

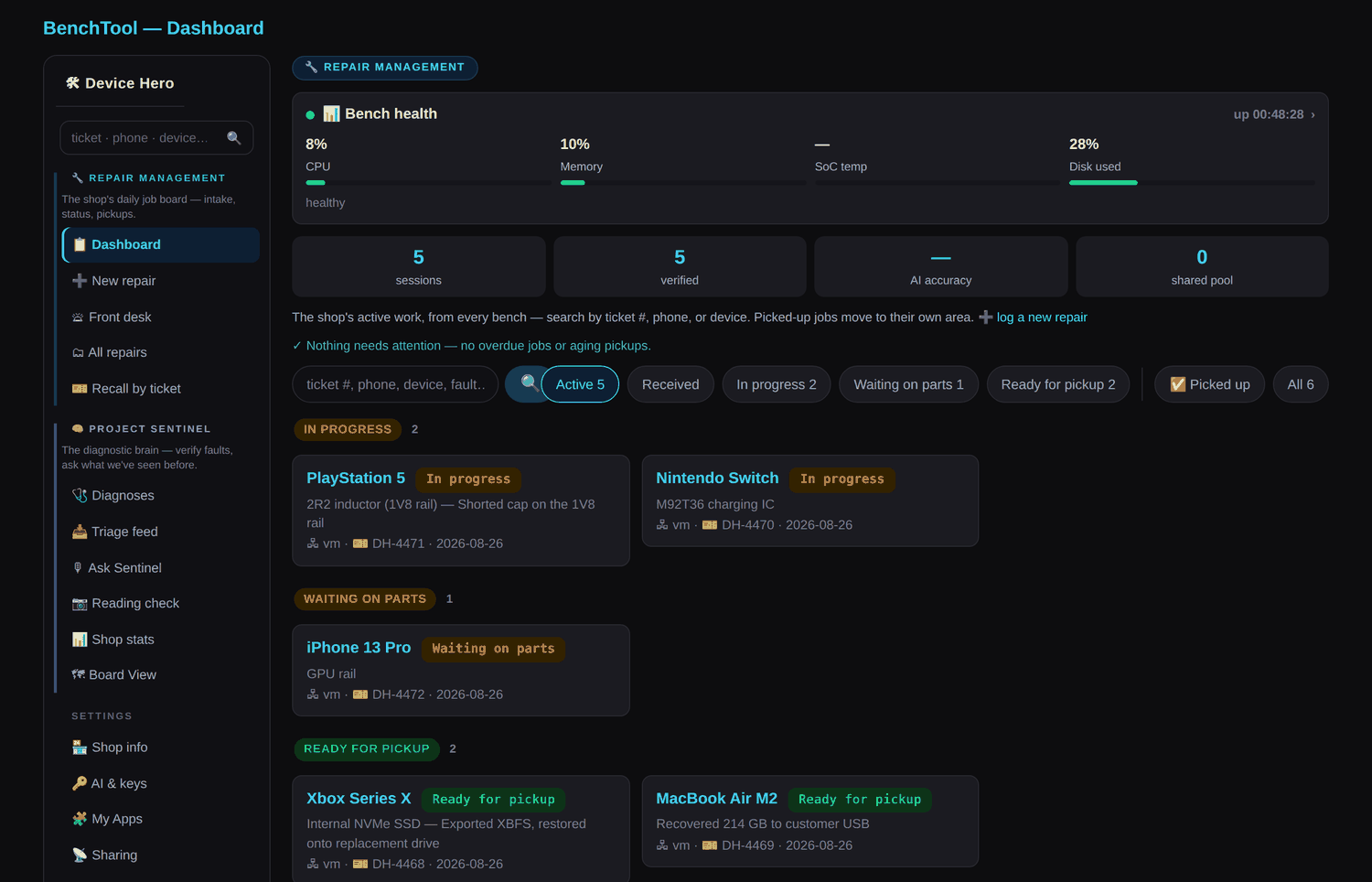

The touchscreen is where the work happens. The Hero Dashboard is where the shop happens. Every bench serves it over your own Wi-Fi — scan the QR on the bench, or open the address on any phone, tablet, or desktop on the network. Nothing to install, no cloud account, no per-seat fee.
Intake, status, pickups. Every device in the shop on one board — in progress, waiting on parts, ready for pickup — pulled from every bench on the network. One search box finds any repair by ticket number, phone number, customer name, IMEI or serial. Front-desk view, printed customer summaries and receipts, recall-by-ticket. Three levels the owner chooses: Off, Lite (an optional phone number and a ticket # — your POS stays the system of record), or Full (a real front desk with per-customer history). Either way: customer data lives on your benches, syncs only across the shop LAN, and is stripped from every shared pool and cloud path.
Sentinel remembers what the shop has already fixed and helps decide what’s wrong with the thing in front of you now. Ask Sentinel turns that memory into answers: a device-and-symptom question comes back in bench language, naming the part to check and the reading to expect. Reading Check turns a photo of your meter into a single PASS or FAIL against a known-good sample. The loop: bench tools file what they saw, a tech confirms what it turned out to be, and that verified pair becomes shop memory — the fifth PS5 with the same error code is a lookup, not an investigation. Ships inside BenchTool, runs on the bench, no internet required.

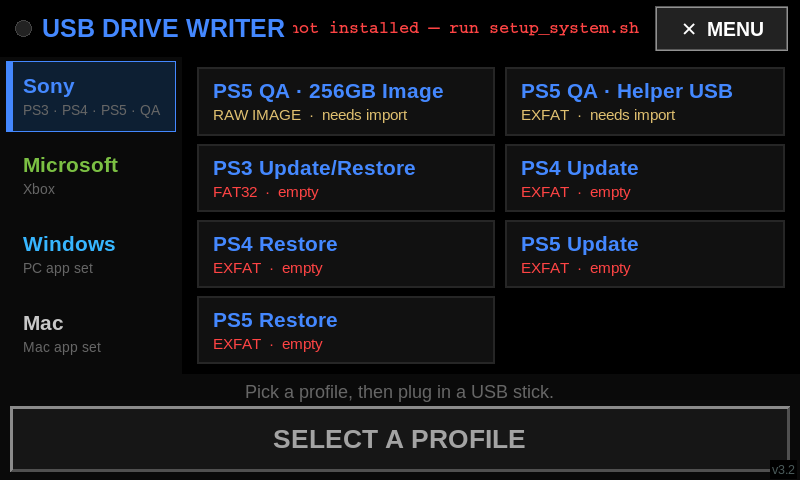

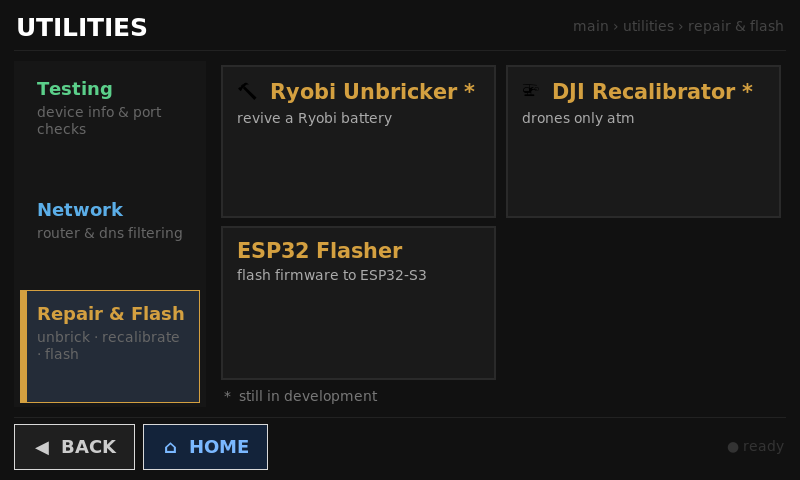

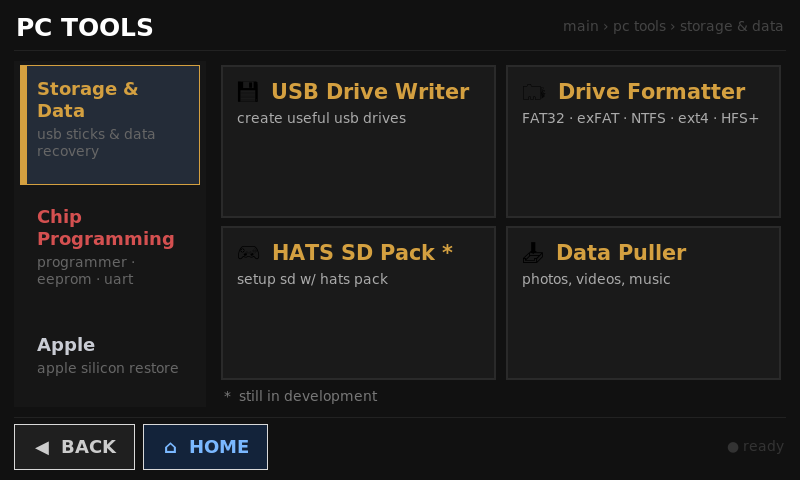

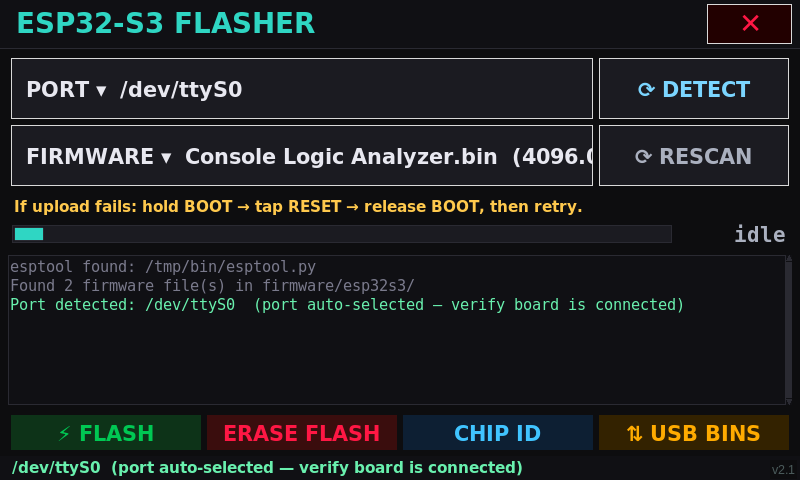

Two of the 65 do far more than their name says — the USB writer and the ESP32 flasher each carry a whole library behind a single button.
You already know your ticket average. Run it against $400.
| Job you already take in | Typical ticket | Units to cover a Full Kit |
|---|---|---|
| PS5 HDMI port replacement | $150 – $200 | 2 – 3 |
| PS5 no-power board-level repair | $180 – $250 | 2 – 3 |
| iPhone board-level diagnostic + repair | $200 – $350 | 2 |
| Controller drift hardware fix | $60 – $90 | 5 – 7 |
| Data recovery off a failing drive | $150 – $400 | 1 – 3 |
38 user-facing changes landed between Aug 26 and Sep 16. The day this list stops growing, the strongest claim on this page is false — and you’d be right to hold us to it. Every entry is posted to the BenchTool Discord the day it ships.

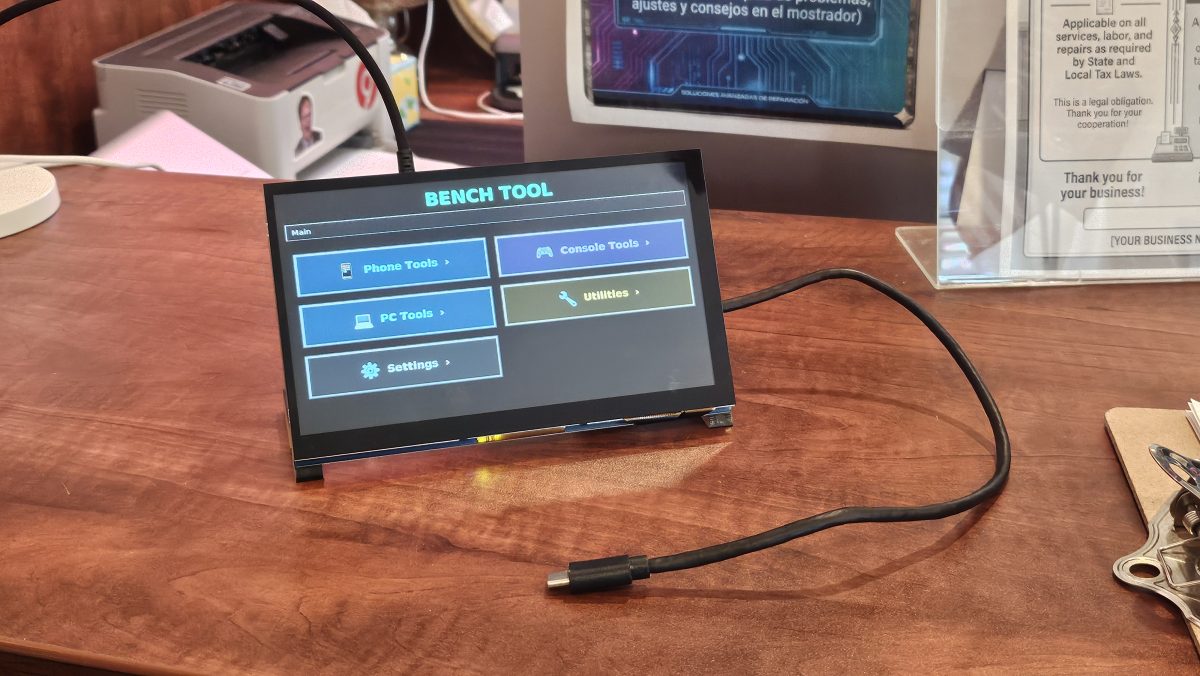

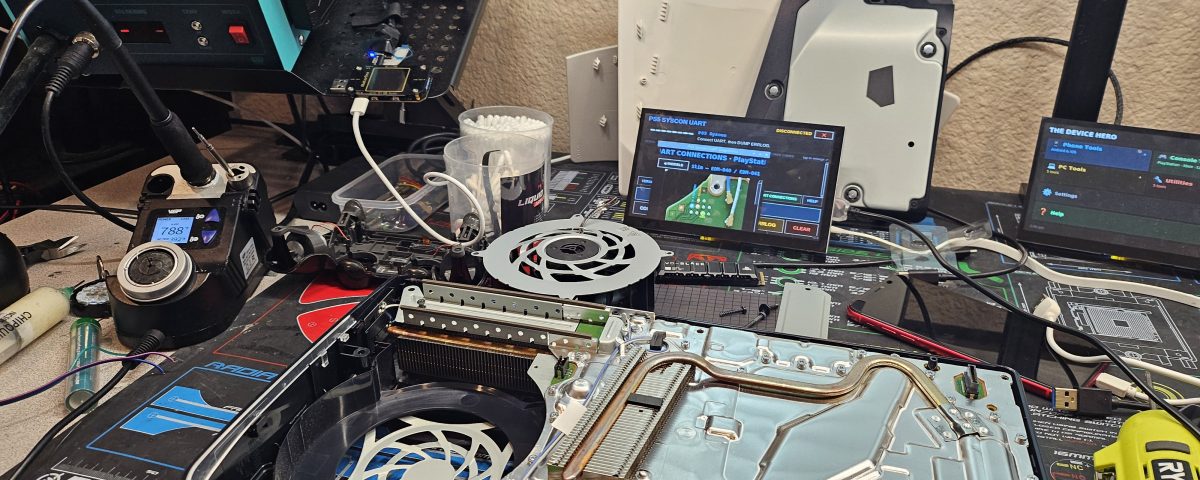

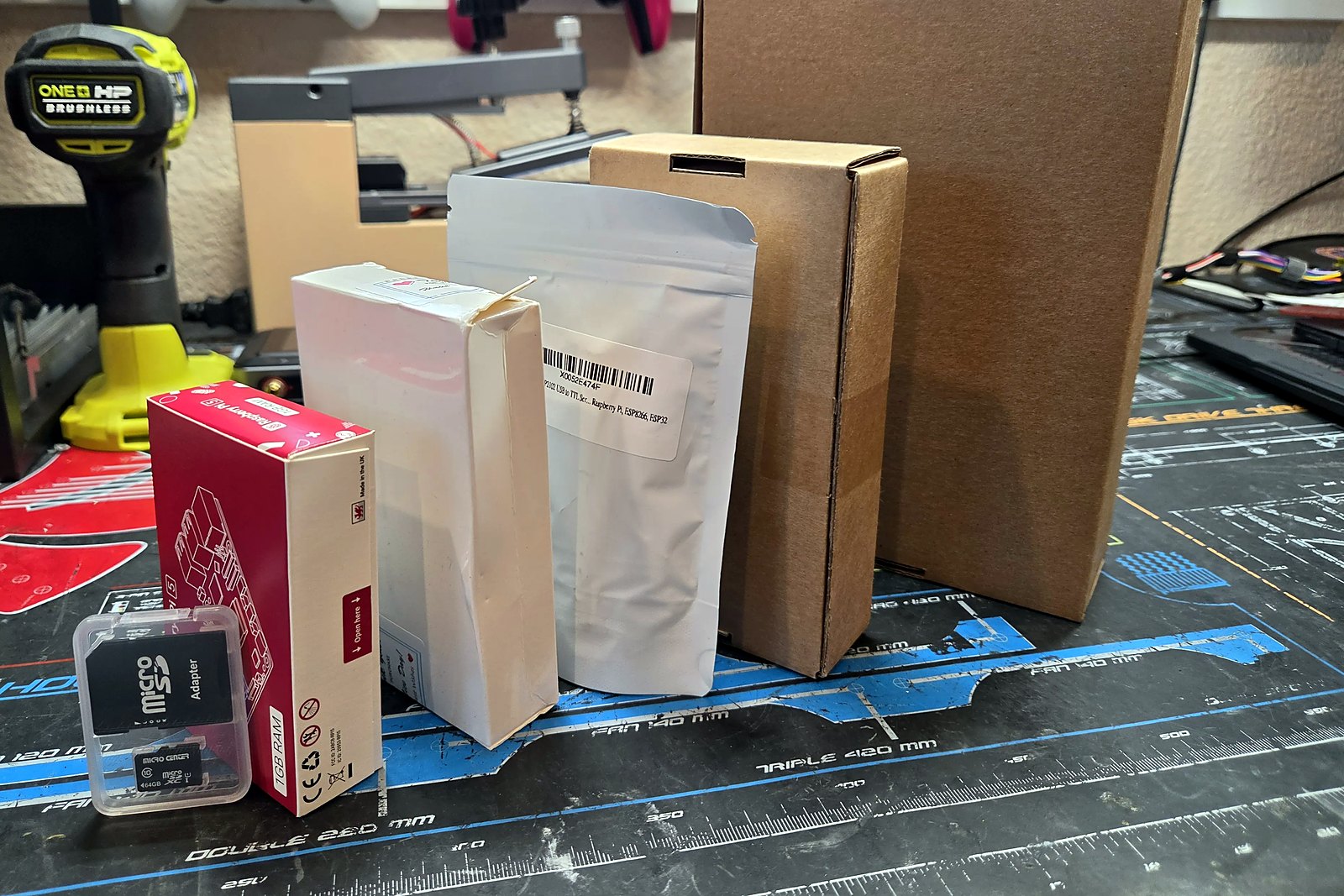

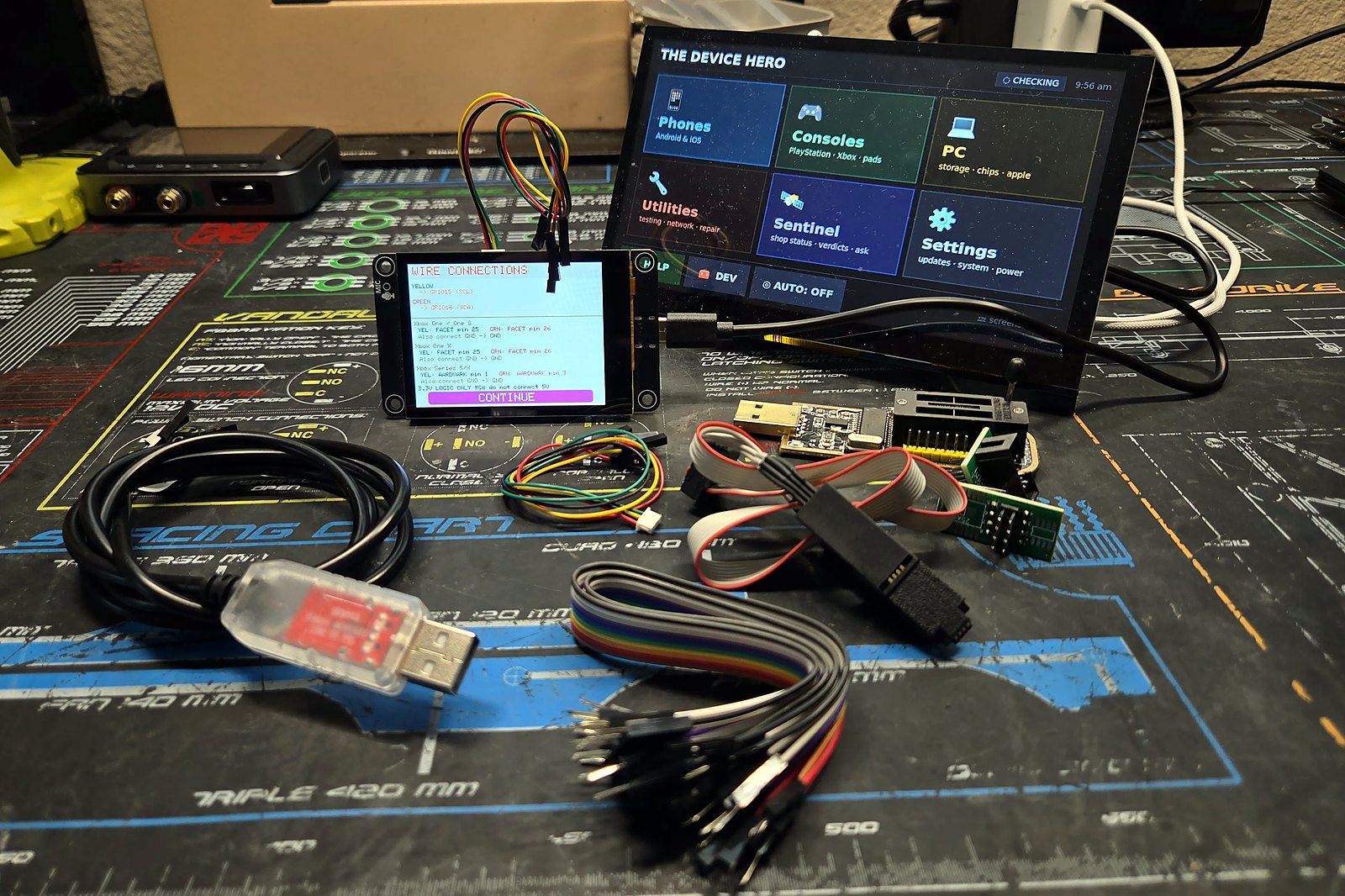

Every BenchTool starts as retail hardware on our own bench in Manor, TX and leaves assembled, imaged and tested. You plug it in and tap a tile.
↗ Click to enlarge
12345↗ Click to enlarge
Same 65+ tools. Same Sentinel. Same lifetime updates. One-time price — no subscription, no credits, no license clock. All three ship assembled with the software preloaded.
Why two prices? The listed prices are what you pay by Zelle or Cash App, straight to Device Hero, LLC. PayPal costs $15 more because it takes a processing fee — in exchange you get their buyer protection, which direct transfers don’t carry. Pick whichever suits you at checkout.
A spec sheet with no limits on it reads as a spec sheet nobody checked. So, before you order:
If any of that is a dealbreaker, better you learn it here than from the box.
The questions shop owners actually ask before spending $400 sight-unseen with a small company.
65+ offline tools. PS5 Syscon decoding, iOS panic analysis, SPI NOR flashing, UART capture, and a shop-wide repair desk — in one 800×480 box that boots in seconds and updates for free, forever.
